Universal Auto Car Antenna SUV Power Electric Aerial Automatic Antenna Mast AM FM Radio 12V

Feature:

-Stainless steel mast, a good AM / FM acceptable performance, the operating current of less than 0.5A,

-Noise less than 50DB, the service life of more than 50,000 times greater than the top edge 4KG,

-Waterproof performance, easy to install, optional multiple mounting head,

-Built-in import micro relays, 3C-2V coaxial cable, cable length according to customer set.

-Economy car automatic antenna

-Five stainless steel mast

-Mast length 39 inches

-FM radio works well

-Low noise, good waterproof

-Easy installation

Specifications:

Installation:

Wiring (three) connection: red wire to the positive power supply,

the black wire with grounding lug,

the green line has two configurations: one is a direct positive power supply, so that the antenna with the power-off and landing, one is connected to another control lines, so the antenna can always control movement

Working voltage: DC12V

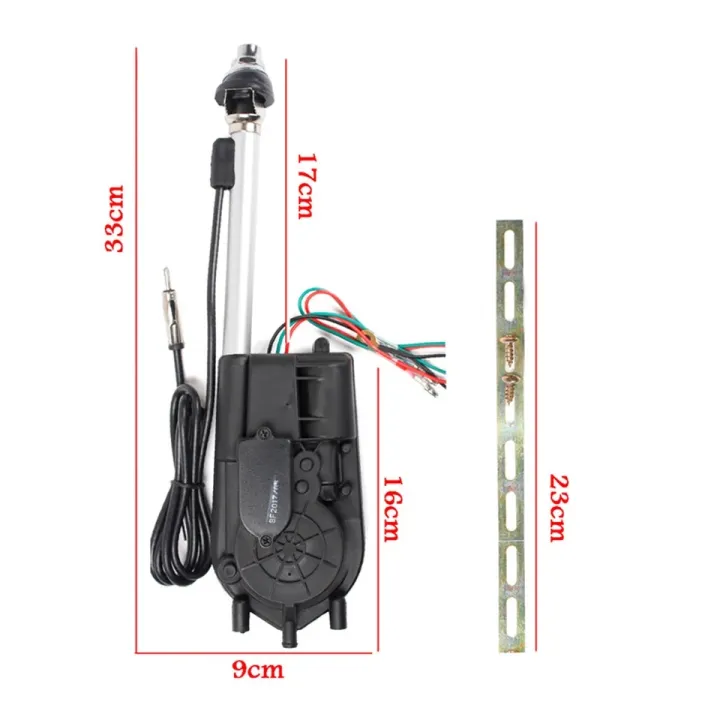

Model: BF-686

Voltage Range: DC10V-14V

Current: 0.7 ± 0.2A

Stretch length: 990mm

Protective bottom: 305mm

Cable length:1400mm

Installed location: front fender

Working principle: PCB control

Antenna length: 800mm

Antenna number: 5 sections

Antenna stem material: SUS304

Cable: 75ohms cables,line length 1.5m

Plug: ISO DIN plugs

Installation Angle: 30°,23°,15°,8°,3°
